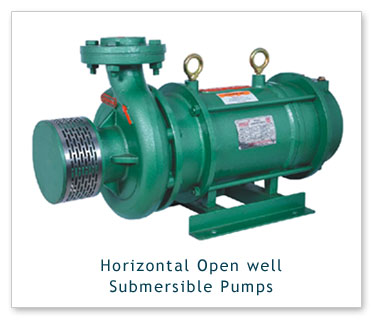

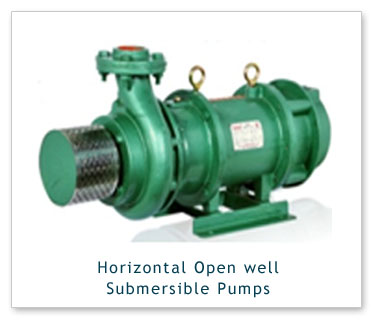

Horizontal Open well Submersible Pumps

About the Product

CHERAN Standard and Premium models Horizontal Openwell Submersible Pumps are ideally suitable for open wells or tanks where a wide fluctuation of water level occur. This work under water and rest at the bottom of the well. Prime mover is rewindable, water-cooled motor. Motor sealing is made by polymers, ‘O’ rings, Oil seals and sand guard to avoid ingress of well water/salt into the motor. This series guarantees long life with energy-efficient performance.

Features
  • Motor is designed with higher cooling effect ensures the longer life of the motor.
  • Dynamically balanced rotating parts ensure minimum vibration and longer life.
  • Designed for wide voltage fluctuations.
  • Less maintenance due to safe designs & high precise work.
  • Motor Body, Base, Housing Bracket, Casing and Impellers C.I. FG-220 Grade.
  • Stainless Steel 410 grade motor shaft.
  • Pure EC Grade copper winding wire, Poly wrapped insulation Cat-B.
  • CRNO Stator and Rotor Stapings.
  • Thrust assembly Stainless Steel and Carbon pad.
  • Quality LTB -4 Housing Bush.
  • Sand Proof design of mechanical seal rings and Sand Guards protection.
  • High Operating Efficiency.
Applications
  • Agriculture
  • Domestic
  • Irrigation
  • Gardens
  • Industrial
  • Rural water supply
Specifications

Power :

3.0 HP to 60.0 HP

Speed :

2880 rpm

Discharge range :

5000 lpm

Head range :

Upto 160 m

Delivery Pipe
Size (mm) :

50, 65, 75 & 100
