About the Product

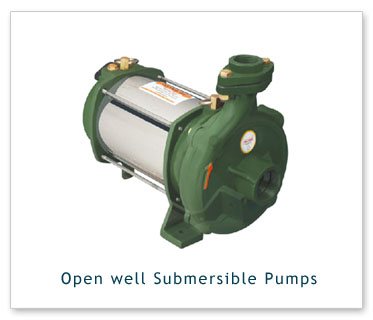

CHERAN Horizontal Openwell Submersible Pumpsets are ideally suitable for Openwell / Tanks where a wide fluctuation of water level occur. This works under water and rest at the bottom of the well or tank. Hence suction and priming problem will not arise. The optimal design of impeller and diffusers enables the best possible hydraulic efficiency.

Cenrtrifugal Pumps
Features
  • maintenance free performance even in very low voltage - 180V-240V.
  • Specially designed Hi- Bolt is provided for easy installation.
  • High Operating Efficiency.
  • Easy to dismantle and repair.
  • 100% pure EC Grade copper employed to make winding wire,
    dual coated with insulation Cat-B.
  • Stamping: Silicon and Low Carbon.
  • Base, Housing Bracket, Casing C.I. FG-220Grade.
  • No Suction and Priming Problem.
Applications
  • Rural water supply.
  • Gardens.
  • Industry.
  • Irrigation.
Specifications

Power :

0.5 HP to 2.0 HP

Speed :

2880 rpm

Discharge range :

20 lpm – 225 lpm

Head range :

5 m - 35 m

Delivery Pipe
Size (mm) :

25, 32, 40 & 50
