Domestic Pumps

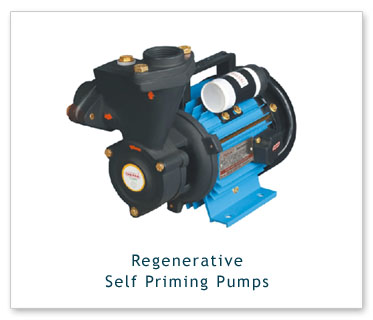

Regenerative Self Priming Pumps

About the Product

CHERAN Regenerative Selfpriming pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under pressure and rigidly locked in the frame. The windings are of high - grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noice free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics.

  • Pumpset available with extension shaft.
  • Built-in with imported Thermal Overload Protector.
  • Specially designed for wide voltage fluctuations.
  • Powder coated multi-color stator body.
  • Double sealed ball bearing.
  • Domestic
  • Small Garden
  • Pressure Boosting
  • Civil Applications

Power :

0.5 HP to 1.0 HP

Speed :

2880 rpm

Discharge range :

10 lpm – 50 lpm

Head range :

5 m 45 m

Suction lift with
Self Priming
Capacity :

7 m

Delivery Pipe
Size (mm) :

25 x 25
